Ford Ranger Lug Pattern 5 Lug: Essential Guide for Enthusiasts

The Ford Ranger with a 5-lug pattern typically has a 5×114.3mm bolt pattern. This is common for mid-sized trucks.

The Ford Ranger is a versatile and popular pickup truck known for its reliability and performance. One crucial aspect of maintaining or modifying your Ranger involves understanding its lug pattern. The 5×114. 3mm bolt pattern is standard for many Ford Rangers, making it easier to find compatible wheels and accessories.

Knowing this specification can simplify your search for aftermarket parts, ensuring a perfect fit. Whether you are upgrading your wheels or replacing old ones, being aware of the lug pattern is essential. It helps in achieving optimal performance and safety for your vehicle.

Ford Ranger Lug Pattern 5 Lug: Essential Guide for Enthusiasts

Credit: www.originalwheels.com

Introduction To Ford Ranger Lug Pattern

The Ford Ranger is a popular pickup truck known for its durability and performance. One crucial aspect of its maintenance involves understanding the lug pattern. This knowledge ensures you choose the right wheels for your vehicle.

Why Lug Patterns Matter

Lug patterns are essential for vehicle safety and performance. They determine how wheels attach to the hub. A mismatch can lead to serious issues, including wheel detachment.

For the Ford Ranger, using the correct lug pattern is crucial. It ensures a snug fit and optimal performance. Incorrect patterns can cause vibrations and uneven tire wear.

Basic Lug Pattern Info

The Ford Ranger typically uses a 5-lug pattern. This means it has five lug holes arranged in a specific circle diameter. The most common pattern for the Ranger is 5×114.3 mm.

Lug Pattern Description
5×114.3 mm Five lug holes with a 114.3 mm circle diameter

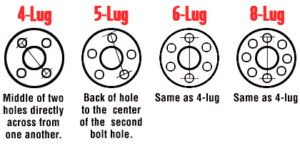

To measure your lug pattern:

  1. Count the number of lug holes.
  2. Measure the distance between two opposite holes.

Understanding the lug pattern ensures proper wheel alignment. It also affects the load distribution and handling of the truck.

  • Always check the vehicle manual.
  • Consult a professional if unsure.

By knowing your Ford Ranger lug pattern, you can make informed decisions. This guarantees safety and enhances the overall driving experience.

Ford Ranger Lug Pattern 5 Lug: Essential Guide for Enthusiasts

Credit: www.stocktonwheel.com

History Of Ford Ranger Lug Patterns

The Ford Ranger has a rich history with varying lug patterns. Understanding these patterns is key for wheel compatibility. This section explores the evolution of Ford Ranger lug patterns, focusing on early and modern models.

Early Models

Early Ford Rangers often featured a 5-lug pattern. This was common in many trucks of that era. The 5×4.5 inch bolt pattern was the most frequent. It offered a balance of strength and versatility.

Here’s a quick overview of early Ford Ranger lug patterns:

Model Year Lug Pattern
1983-1992 5×4.5 inch
1993-1997 5×4.5 inch

Modern Models

Modern Ford Rangers have seen some changes. The more recent models use a 6-lug pattern. This shift enhances load capacity and wheel stability.

Here’s a summary of modern Ford Ranger lug patterns:

Model Year Lug Pattern
2019-Present 6×5.5 inch

Note the 6×5.5 inch pattern in newer models. This change reflects advancements in truck design and function.


Identifying The 5-lug Pattern

Identifying the 5-Lug Pattern on a Ford Ranger

Knowing the lug pattern is essential for wheel replacements. For the Ford Ranger, understanding the 5-lug pattern ensures compatibility. This guide will help you identify the 5-lug pattern using both visual and measurement methods.

Visual Identification

Start by looking at the wheel hub. Count the number of lugs. You should see five lugs. Ensure they form a circular pattern.

  • Look for a star-like shape.
  • All lugs should be evenly spaced.
  • Verify the pattern is consistent with other wheels.

Visual identification is quick but may not be precise. Use this method for a general check.

Using Measurement Tools

For accurate identification, use a measuring tool. A caliper or tape measure works best.

  1. Measure from the center of one lug to the center of the next lug.
  2. Record the measurement in millimeters.
  3. Compare this with the standard 5-lug pattern for Ford Rangers.

The typical measurement for a Ford Ranger’s 5-lug pattern is 114.3 mm or 4.5 inches. Use the table below for reference:

Vehicle Lug Pattern Measurement (mm)
Ford Ranger 5-lug 114.3

Using measurement tools provides a precise method for identifying the lug pattern.

Compatibility With Other Vehicles

The Ford Ranger Lug Pattern 5 Lug offers diverse vehicle compatibility. This section highlights which vehicles share this pattern. We also discuss potential issues.

Popular Compatible Models

Many vehicles share the 5-lug pattern with the Ford Ranger. Here’s a list of some popular models:

  • Ford Explorer (1991-2001)
  • Ford Bronco II (1984-1990)
  • Mazda B-Series (1994-2009)
  • Jeep Cherokee (1984-2001)

These models can use the same wheels as the Ford Ranger. This allows for easy wheel swaps and upgrades.

Potential Issues

While many vehicles share the same 5-lug pattern, there are potential issues:

  1. Offset Differences: Not all wheels have the same offset. Check the offset before swapping wheels.
  2. Hub Bore Size: The hub bore size must match. A mismatched hub bore can cause vibrations.
  3. Brake Caliper Clearance: Ensure the new wheels clear the brake calipers. This is crucial for safety.

Always double-check compatibility before making a wheel swap. This ensures safety and performance.

Aftermarket Wheel Options

The Ford Ranger has a classic 5-lug pattern, which opens doors for various aftermarket wheel options. Switching wheels can transform your truck’s look and performance. This section will guide you through choosing the right wheels and highlight top brands to consider.

Choosing The Right Wheels

Selecting the right wheels involves more than just looks. You must consider wheel size, material, and offset. These factors affect your truck’s handling and safety.

Start by checking the wheel size. The size should match your truck’s specifications. A mismatch can lead to handling issues.

Next, consider the material. Wheels come in steel and alloy varieties. Steel wheels are durable but heavy. Alloy wheels are lighter and improve performance.

Lastly, check the offset. The offset is the distance from the hub mounting surface to the wheel’s centerline. Proper offset ensures the wheels fit perfectly and perform well.

Top Brands To Consider

Several brands offer excellent aftermarket wheels for the Ford Ranger. Here are some top choices:

  • Method Race Wheels: Known for durability and performance. Ideal for off-road adventures.
  • Fuel Off-Road: Offers stylish designs and rugged construction. Perfect for a bold look.
  • XD Series: Delivers a mix of style and strength. Great for both on-road and off-road use.
  • American Racing: Combines classic designs with modern technology. Suitable for a vintage look.

Choosing a reputable brand ensures quality and longevity. Always prioritize trusted brands for your wheel upgrades.

Brand Material Best For
Method Race Wheels Alloy Off-road performance
Fuel Off-Road Alloy Bold, rugged look
XD Series Alloy All-terrain use
American Racing Alloy Vintage style
Ford Ranger Lug Pattern 5 Lug: Essential Guide for Enthusiasts

Credit: www.therangerstation.com

Installation Tips And Tricks

Installing a new set of wheels on your Ford Ranger can be exciting. The process is straightforward with the right guidelines. Below are some essential tips and tricks for the Ford Ranger Lug Pattern 5 Lug.

Preparing Your Vehicle

Before starting, ensure your vehicle is on a flat surface. Use wheel chocks to prevent any movement. Gather all necessary tools such as a lug wrench, jack, and torque wrench.

Tools Checklist:

  • Lug wrench
  • Jack and jack stands
  • Torque wrench
  • Wheel chocks
  • Anti-seize lubricant

Inspect the new wheels and ensure they match the Ford Ranger’s lug pattern. Clean the wheel hub to remove any dirt or rust.

Step-by-step Guide

  1. Loosen the lug nuts slightly while the vehicle is on the ground.
  2. Use the jack to lift the vehicle until the wheel is off the ground.
  3. Place jack stands under the vehicle for safety.
  4. Fully remove the loosened lug nuts and take off the old wheel.
  5. Clean the wheel hub using a wire brush if necessary.
  6. Apply a small amount of anti-seize lubricant to the lug studs.
  7. Mount the new wheel onto the hub, aligning it with the lug studs.
  8. Hand-tighten the lug nuts in a star pattern to ensure even tightening.
  9. Lower the vehicle so the wheel touches the ground but is not fully loaded.
  10. Use a torque wrench to tighten the lug nuts to the manufacturer’s specifications.

Double-check each lug nut to ensure they are all securely tightened.

Below is a quick reference table for torque specifications:

Vehicle Model Torque Specification (ft-lbs)
Ford Ranger 100-120

Repeat this process for each wheel. Ensure all tools are stored properly after use. Your Ford Ranger is now ready with its new wheels!

Maintenance And Care

The Ford Ranger is a rugged and reliable truck. To maintain its performance, regular care of the lug pattern is essential. Proper maintenance ensures safety and longevity.

Routine Checks

Performing routine checks on the lug pattern is vital. Here are some steps:

  • Inspect lug nuts for any signs of wear or damage.
  • Ensure all lug nuts are properly torqued.
  • Check for any corrosion or rust around the lug area.

Use a torque wrench for accurate results. Tighten the lug nuts in a crisscross pattern.

Common Problems

Several common problems can affect the Ford Ranger’s lug pattern. Addressing these issues promptly helps maintain safety.

  1. Loose lug nuts: These can cause wheel vibrations. Always ensure they are tight.
  2. Stripped threads: This can occur from over-tightening. Replace damaged lug nuts immediately.
  3. Corrosion: Rust can weaken the lug nuts. Regularly clean and lubricate them.

Here is a table summarizing common problems and solutions:

Problem Solution
Loose lug nuts Tighten using a torque wrench
Stripped threads Replace damaged lug nuts
Corrosion Clean and lubricate regularly

Regular maintenance of the Ford Ranger lug pattern ensures optimal performance and safety.

Faqs About 5-lug Patterns

Understanding the 5-lug pattern for your Ford Ranger can be tricky. We have compiled common questions and expert answers. This will help you understand everything about the Ford Ranger lug pattern.

Common Questions

  • What is a 5-lug pattern?
  • Why is the 5-lug pattern important?
  • How do I measure a 5-lug pattern?
  • Can I change my Ford Ranger’s lug pattern?
  • What tools do I need for measuring the lug pattern?

Expert Answers

What is a 5-lug pattern?

A 5-lug pattern refers to the arrangement of five bolt holes on a wheel. This pattern ensures the wheel fits securely on the vehicle.

Why is the 5-lug pattern important?

The 5-lug pattern is crucial for wheel compatibility. It ensures your wheels fit without issues. Proper fitment affects vehicle safety and performance.

How do I measure a 5-lug pattern?

Use a ruler or measuring tape. Measure from the center of one lug to the outer edge of the opposite lug. This gives you the diameter of the lug circle.

Can I change my Ford Ranger’s lug pattern?

Yes, you can change the lug pattern. You need adapters or custom wheels. Consult with a professional before making changes.

What tools do I need for measuring the lug pattern?

You’ll need a ruler or measuring tape. A caliper can also help for more precise measurements.

Frequently Asked Questions

What Fords Have A 5×4 5 Bolt Pattern?

Ford models with a 5×4. 5 bolt pattern include the Mustang, Ranger, and older F-150 trucks. Ensure proper fitment by checking your specific model year.

What Lug Pattern Is A 2003 Ford Ranger?

The 2003 Ford Ranger has a 5×4. 5 lug pattern. This pattern is also known as 5×114. 3.

What Is The Lug Pattern On A 1999 Ford Ranger?

The lug pattern on a 1999 Ford Ranger is 5×4. 5 inches (5×114. 3mm). This pattern fits many other vehicles.

What Stud Pattern Is A Ford Ranger?

The Ford Ranger typically has a 6×139. 7mm (6×5. 5″) stud pattern. This applies to most models. Always check your specific model for accuracy.

Conclusion

Understanding the Ford Ranger’s 5-lug pattern is crucial for proper wheel fitment. Ensure compatibility for safety and performance. Check your vehicle’s manual or consult a professional. Selecting the right lug pattern enhances your driving experience. Stay informed and make the best choice for your Ford Ranger.
