2013 Ford F150 Iwe Solenoid: Troubleshooting and Fixing Tips

The 2013 Ford F150 IWE solenoid controls the vacuum to the front hubs for engaging or disengaging 4WD. It prevents the front hubs from engaging when not needed.

The IWE (Integrated Wheel End) solenoid is an essential component in the 2013 Ford F150’s 4WD system. It manages the vacuum flow to the front hubs, ensuring they engage or disengage efficiently. Proper functioning of this solenoid is crucial for maintaining the vehicle’s performance and fuel efficiency.

A malfunctioning IWE solenoid can lead to issues like unwanted hub engagement or 4WD failure. Regular maintenance and timely replacement of the solenoid can prevent such problems, enhancing the longevity and reliability of your Ford F150. Understanding its role helps in diagnosing 4WD issues effectively.

Common Symptoms

The 2013 Ford F150 IWE solenoid is a crucial component in the four-wheel drive system. When it fails, it can cause several noticeable issues. Identifying these symptoms early can save you from costly repairs.

Strange Noises

If you hear strange noises from the front wheels, it could be the IWE solenoid. These noises might sound like clicking, grinding, or a knocking sound. They usually occur when shifting from two-wheel drive to four-wheel drive.

These noises are due to the solenoid not engaging or disengaging properly. The vacuum lines might also be leaking, causing the IWE solenoid to malfunction. Always check the vacuum lines for any signs of wear or damage.

Loss Of Four-wheel Drive

A faulty IWE solenoid can cause a loss of four-wheel drive. You might notice the vehicle struggling to switch to four-wheel drive mode. This can be dangerous, especially in off-road conditions.

The four-wheel drive system relies on the IWE solenoid to engage the front wheels. If the solenoid is not working, the system will fail. It’s important to address this issue immediately for safe driving.

Symptom Possible Cause
Strange Noises IWE solenoid not engaging properly
Loss of Four-Wheel Drive Faulty IWE solenoid

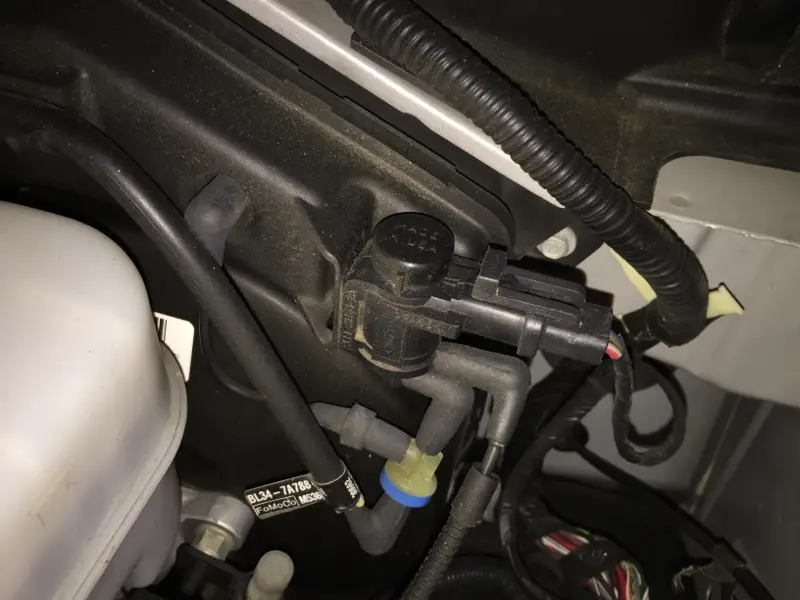

2013 Ford F150 Iwe Solenoid: Troubleshooting and Fixing Tips

Credit: www.youtube.com

Initial Diagnosis

Diagnosing issues with the 2013 Ford F150 IWE solenoid can save time and money. A clear diagnosis process helps identify problems efficiently. This guide will walk you through the initial steps, ensuring your vehicle runs smoothly.

Visual Inspection

Begin with a visual inspection of the IWE solenoid and its components. Look for any visible damage or wear.

  • Check for cracks or breaks in the solenoid.
  • Inspect the wiring for any signs of fraying or damage.
  • Look for any loose connections or corroded terminals.

A thorough visual inspection can reveal obvious issues. Ensure to examine everything closely.

Listen For Vacuum Leaks

Next, listen for vacuum leaks around the solenoid and vacuum lines. A hissing sound indicates a potential leak.

  • Start the engine and let it idle.
  • Move your ear close to the solenoid and vacuum lines.
  • Listen for any unusual hissing or whooshing sounds.

A vacuum leak can cause the IWE solenoid to malfunction. Identifying leaks early prevents further damage.

Inspection Step What to Look For
Visual Inspection Cracks, frayed wiring, loose connections
Listen for Vacuum Leaks Hissing or whooshing sounds

Following these steps ensures a proper initial diagnosis of your 2013 Ford F150 IWE solenoid. Addressing these issues early helps maintain your vehicle’s performance.


Tools Needed

Tools Needed for Replacing 2013 Ford F150 IWE Solenoid

Changing the IWE solenoid on a 2013 Ford F150 requires specific tools. Using the right tools ensures a smooth and efficient process. Below, we list the essential tools you need.

Basic Hand Tools

Start with basic hand tools. These include:

  • Screwdrivers: Both Phillips and flathead types.
  • Socket Set: Metric sizes will be most useful.
  • Wrenches: Open-end and box-end types.
  • Pliers: Needle-nose and regular pliers.

Having these tools will help remove and install various parts. Ensure they are of good quality.

Vacuum Gauge

A vacuum gauge is crucial. It helps test the IWE solenoid’s functionality. The vacuum gauge measures the vacuum pressure. This ensures the solenoid operates correctly.

To use a vacuum gauge:

  1. Connect the gauge to the solenoid vacuum line.
  2. Start the engine and monitor the readings.
  3. Ensure the vacuum pressure matches the specifications.

These steps will help diagnose any issues with the solenoid.

Accessing The Solenoid

Accessing the solenoid in a 2013 Ford F150 can seem tricky. But with clear steps, anyone can do it. This guide helps you find and replace the solenoid.

Locate The Solenoid

The solenoid is near the front axle. Follow these steps to find it:

  • Park the truck on a flat surface.
  • Turn off the engine and let it cool down.
  • Open the hood and locate the front axle.
  • Find the solenoid on the axle, near the driver’s side.

Here is a simple table to help you locate the solenoid:

Step Action
1 Park on a flat surface
2 Turn off the engine
3 Open the hood
4 Locate the front axle
5 Find the solenoid on the axle

Remove The Old Solenoid

Now that you found the solenoid, it’s time to remove it. Follow these steps:

  1. Disconnect the negative battery cable.
  2. Unplug the electrical connector from the solenoid.
  3. Remove the bolts holding the solenoid in place.
  4. Gently pull the solenoid out of its housing.
  5. Check for any debris or damage in the solenoid housing.

Remember to handle all parts with care. Avoid damaging nearby components.

Testing The Solenoid

Testing the Solenoid on a 2013 Ford F150

The IWE solenoid in a 2013 Ford F150 ensures proper 4WD functionality. Regular testing can prevent unexpected issues on the road. Follow these steps to test the solenoid effectively.

Check For Power

First, you need to check if the solenoid is receiving power. Use a multimeter to measure voltage.

  1. Set the multimeter to DC voltage.
  2. Locate the IWE solenoid connector.
  3. Connect the multimeter probes to the connector pins.
  4. Turn the ignition to the “on” position without starting the engine.
  5. Read the voltage on the multimeter.

The voltage should be around 12V. If not, there may be a wiring issue.

Test Vacuum Flow

Next, test the vacuum flow to ensure the solenoid is working correctly.

  • Disconnect the vacuum line from the solenoid.
  • Connect a vacuum gauge to the solenoid.
  • Start the engine and let it idle.
  • Observe the vacuum gauge reading.

The vacuum should be steady. If the reading fluctuates, the solenoid might be faulty.

Step Action Expected Result
1 Check for Power 12V on multimeter
2 Test Vacuum Flow Steady vacuum gauge reading

By following these steps, you can ensure your 2013 Ford F150’s IWE solenoid is functioning properly. Regular checks can save you from unexpected 4WD issues.

2013 Ford F150 Iwe Solenoid: Troubleshooting and Fixing Tips

Credit: www.f150forum.com

Replacing The Solenoid

Replacing the 2013 Ford F150 IWE solenoid is essential for proper function. This guide will help you through the replacement process.

Install New Solenoid

First, remove the old solenoid. Disconnect the electrical connector. Take out the mounting bolts and remove the solenoid.

Next, place the new solenoid in position. Secure it with the mounting bolts. Reconnect the electrical connector. Ensure everything is tight and secure.

Reconnect Vacuum Lines

Locate the vacuum lines. Carefully reconnect them to the new solenoid. Make sure the connections are snug.

Check for any signs of wear or damage. Replace any worn vacuum lines. Properly connected lines ensure the solenoid works correctly.

Test the new solenoid. Start the truck and check for any issues. A properly working solenoid ensures smooth operation.

Tools Needed:

  • Wrench set
  • New solenoid
  • Vacuum line

Steps:

  1. Disconnect electrical connector
  2. Remove old solenoid
  3. Install new solenoid
  4. Reconnect vacuum lines
  5. Test solenoid

Follow these steps to replace your 2013 Ford F150 IWE solenoid. Enjoy a smooth drive with your F150.

Post-repair Checks

After replacing the 2013 Ford F150 IWE Solenoid, it’s crucial to perform post-repair checks. These checks ensure your vehicle runs smoothly and prevent future issues.

Test Drive

First, take your Ford F150 for a test drive. Start with a short drive around your neighborhood. Listen for unusual noises or vibrations. Pay attention to the feel of the steering. It should be smooth and responsive.

Drive at different speeds. Test both city and highway conditions. Make sure to engage the 4WD system. It should shift smoothly without hesitation. If you notice any issues, stop and inspect the solenoid again.

Check For Error Codes

Next, scan your truck for error codes. Use an OBD-II scanner. Connect it to the diagnostic port under the dashboard. Turn on the ignition but don’t start the engine. Follow the scanner’s instructions to read the codes.

Look for any codes related to the IWE solenoid. Common codes include P1867 and C1979. If any codes are present, note them down. Clear the codes and restart the engine. If the codes reappear, further inspection is needed.

Visual Inspection

Perform a visual inspection of the IWE solenoid and surrounding components. Ensure all connections are secure. Check for any signs of leaks or damage. Inspect the vacuum lines for cracks or wear.

Ensure the solenoid is properly seated. Look for loose bolts or missing parts. A thorough visual check can catch issues before they become bigger problems.

Fluid Levels

Check the vehicle’s fluid levels. Start with the transmission fluid. Make sure it’s at the correct level. Inspect the transfer case fluid as well. Proper fluid levels help ensure smooth operation.

Also, check the engine oil and coolant levels. Low fluid levels can cause various issues. Top up any low fluids before driving further.

Check Description
Test Drive Drive at various speeds; engage 4WD.
Check for Error Codes Use OBD-II scanner; look for specific codes.
Visual Inspection Check solenoid and connections; look for damage.
Fluid Levels Check transmission, transfer case, oil, and coolant levels.
2013 Ford F150 Iwe Solenoid: Troubleshooting and Fixing Tips

Credit: www.f150forum.com

Preventative Maintenance

Regular preventative maintenance can extend the life of your 2013 Ford F150 IWE solenoid. This simple routine helps avoid costly repairs and ensures smooth vehicle performance. Here are some easy steps to keep your IWE solenoid in top condition.

Regular Inspections

Check the IWE solenoid regularly. Look for signs of wear and tear. Catching issues early can prevent bigger problems.

  • Inspect the solenoid every three months.
  • Look for any dirt or debris around the solenoid.
  • Check for any signs of corrosion or rust.

Regular inspections can help spot potential issues. This way, you can fix them before they become major problems.

Keep Vacuum Lines Clear

Ensure the vacuum lines are free from obstructions. Blocked lines can cause the solenoid to malfunction.

Task Frequency
Check vacuum lines for blockages Every month
Clean any debris from the lines As needed

Follow these steps to keep the vacuum lines clear:

  1. Locate the vacuum lines near the solenoid.
  2. Inspect the lines for any visible obstructions.
  3. Use compressed air to clear any debris.

Keeping the vacuum lines clear ensures the solenoid works properly. This simple step can save you from future headaches.

Frequently Asked Questions

What Are The Symptoms Of Iwe On A 2013 Ford F-150?

Symptoms of IWE on a 2013 Ford F-150 include grinding noises, difficulty in shifting into 4WD, and front axle issues.

What Does An Iwe Solenoid Do?

An IWE solenoid controls the vacuum system in a 4WD vehicle. It engages and disengages the front hub. This allows seamless switching between 2WD and 4WD modes.

What Does Iwe Stand For In Ford?

IWE in Ford stands for Integrated Wheel End. It is a system used to engage and disengage the front wheels in 4WD vehicles.

How Much Does It Cost To Replace A Shift Solenoid On A Ford F-150?

Replacing a shift solenoid on a Ford F-150 typically costs between $150 and $400. Labor charges range from $50 to $150.

Conclusion

The 2013 Ford F150 IWE solenoid is essential for optimal vehicle performance. Regular maintenance ensures longevity and reliability. By understanding its function and addressing issues promptly, you can avoid costly repairs. Keep your F150 running smoothly by paying attention to the IWE solenoid.

Stay proactive and enjoy a dependable driving experience.
