2006 F150 Odometer Display Not Working: Quick Fix Guide

The 2006 F150 odometer display not working is often due to a faulty solder joint on the instrument cluster. Another common issue is a blown fuse or faulty wiring.

Having a non-functional odometer display in your 2006 F150 can be frustrating and inconvenient. This problem is usually caused by specific issues such as a defective solder joint in the instrument cluster or electrical problems like a blown fuse or damaged wiring.

Addressing this issue promptly is crucial for accurate mileage tracking and essential vehicle information. Understanding the root causes and potential solutions can help you restore functionality and ensure your truck’s performance remains reliable. This guide will explore common reasons behind the malfunction and offer practical repair tips.

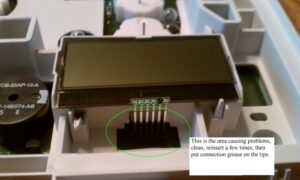

2006 F150 Odometer Display Not Working: Quick Fix Guide

Credit: www.f150forum.com

Common Causes

The odometer in your 2006 F150 may stop working for various reasons. Knowing these causes can help you fix the issue. Below, we will explore two of the most common causes.

Electrical Issues

One common cause of a non-working odometer is electrical issues. These problems can occur in different parts of the electrical system. Here are some potential culprits:

  • Blown Fuse: A blown fuse can disrupt the odometer display.
  • Wiring Problems: Damaged or frayed wires can cause display issues.
  • Faulty Connections: Loose or corroded connections can affect the odometer.

Check the fuse box first. Replace any blown fuses. Inspect the wiring for any visible damage. Ensure all connections are secure and free from corrosion.

Faulty Odometer

Sometimes, the problem lies within the odometer itself. Faulty odometers can be due to internal malfunctions. Below are some possible reasons:

  • Broken Odometer Gear: The gear inside may be broken.
  • Defective Digital Display: The display unit might be faulty.
  • Software Glitches: Software errors can cause display failure.

Inspect the odometer gear for signs of damage. If the gear is intact, the digital display may need replacement. Software issues might require a professional diagnosis.

Initial Diagnostics

If your 2006 F150 odometer display is not working, you need to perform initial diagnostics. The goal is to identify the root cause. This process involves checking several common areas that may be causing the problem. Below are some steps to help you get started.

Check Fuses

A blown fuse could be why your odometer display is not working. Start by locating the fuse box. The fuse box is usually under the dash or hood. Once you find it, use the diagram on the cover to locate the fuse related to the instrument cluster.

Here’s a quick guide to checking fuses:

  1. Turn off the engine and remove the key.
  2. Open the fuse box cover.
  3. Find the correct fuse using the diagram.
  4. Use a fuse puller to remove the fuse.
  5. Check if the fuse is blown. A blown fuse will have a broken metal strip.
  6. If the fuse is blown, replace it with a new one of the same rating.

Inspect Wiring

Wiring issues can also cause the odometer display to malfunction. Inspect the wiring connected to the odometer and instrument cluster. Look for any loose or damaged wires.

Here’s how to inspect the wiring:

  • Disconnect the battery to ensure safety.
  • Remove the instrument cluster to access the wiring.
  • Check for any loose connections.
  • Look for any frayed or damaged wires.
  • Repair or replace any damaged wires you find.
  • Reconnect everything and test the odometer display.

Performing these initial diagnostics can help you identify why your 2006 F150 odometer display is not working. By checking fuses and inspecting wiring, you can often fix the issue without professional help.


Tools Needed

Fixing the odometer display on your 2006 F150 requires specific tools. This guide covers the essential tools you need. Having the right tools ensures a smooth and successful repair.

Basic Toolkit

A basic toolkit is essential for any car repair. Here are the items you need:

  • Screwdrivers: Both Phillips and flathead types.
  • Socket set: Various sizes for different bolts.
  • Pliers: Needle-nose pliers work best.
  • Wrench set: Ensure you have both metric and standard sizes.

These tools help you remove panels and access the odometer. Make sure each tool is in good condition.

Multimeter

A multimeter is crucial for diagnosing electrical issues. This tool measures voltage, current, and resistance. Here’s how to use it:

  1. Set the multimeter to the correct measurement type.
  2. Touch the probes to the circuit or component.
  3. Read the display for accurate measurements.

Using a multimeter helps identify faulty connections or components. It ensures the odometer gets the right electrical signals.

Having both a basic toolkit and a multimeter prepares you for the task. These tools make the repair process straightforward and efficient.

Fixing Electrical Problems

Is your 2006 F150 odometer display not working? It could be an electrical issue. Fixing electrical problems may seem tricky, but it’s manageable. Below, we explore two common fixes: replacing fuses and repairing wiring.

Replacing Fuses

The fuses protect your truck’s electrical components. If a fuse blows, it disrupts the odometer display. Here’s a simple guide to replacing fuses:

  1. Locate the fuse box. It’s usually under the dashboard or hood.
  2. Check the owner’s manual for the fuse diagram.
  3. Identify the fuse for the odometer.
  4. Use a fuse puller or needle-nose pliers to remove the fuse.
  5. Inspect the fuse. If the metal strip inside is broken, it’s blown.
  6. Replace it with a fuse of the same amperage.

Always use the correct amperage to avoid further damage.

Repairing Wiring

Faulty wiring can also cause the odometer display to fail. Here’s how to check and repair wiring:

  1. Disconnect the truck’s battery to prevent shocks.
  2. Remove the dashboard panel to access the wiring.
  3. Inspect the wires for any visible damage or wear.
  4. Use a multimeter to check for continuity in the wires.
  5. If a wire is damaged, strip the insulation from both ends of the break.
  6. Twist the bare wires together and solder them.
  7. Cover the repair with electrical tape or heat-shrink tubing.

Always ensure the wiring is secure before reassembling the dashboard.

Odometer Replacement

Is the odometer display of your 2006 F150 not working? You might need an odometer replacement. This guide will help you through the process. Follow these steps to ensure a smooth replacement.

Removing Dashboard

First, gather all necessary tools. You will need a screwdriver, pliers, and a wrench.

  • Disconnect the battery to avoid any electrical issues.
  • Remove the screws holding the dashboard in place.
  • Carefully pull out the dashboard to access the odometer.

Make sure you do not damage any wires. Take your time during this step.

Installing New Odometer

Now, it’s time to install the new odometer. Follow these steps:

  1. Connect the new odometer to the existing wiring.
  2. Secure it in place with the screws.
  3. Reattach the dashboard carefully.

Once everything is secure, reconnect the battery. Check to see if the odometer display is working.

Testing The Fix

After addressing the problem, it’s time to ensure your solution works. Let’s dive into the process of testing the fix for your 2006 F150 odometer display.

Reconnecting Battery

First, reconnect the car battery. This step is essential to power the odometer.

  • Make sure the battery terminals are clean.
  • Attach the positive terminal first.
  • Then connect the negative terminal.

Tighten the connections securely. Ensure there is no loose contact.

Verifying Odometer Function

Turn on the ignition. Check the odometer display.

  1. Insert the key and turn to the “On” position.
  2. Observe if the odometer lights up.

If the display is still blank, you may need further diagnostics.

Test drive your truck for a short distance. Make sure the odometer records the mileage accurately.

Preventive Maintenance

Preventive maintenance is crucial to keep your 2006 F150 in good shape. Regularly checking and maintaining your vehicle can prevent issues. This is especially true for the odometer display. Here are some steps you can take.

Regular Inspections

Regular inspections help catch issues early. Schedule a checkup every six months. During inspections, focus on the dashboard. Look for signs of wear and tear. Check if the display is dim or flickering. Early detection can save you money.

Keeping Contacts Clean

Dirty contacts can cause the odometer display to fail. It’s important to keep them clean. Follow these steps:

  • Turn off the vehicle before cleaning.
  • Use a soft cloth to wipe the contacts.
  • Avoid using water or liquid cleaners.
  • Check for dust or debris regularly.

Clean contacts ensure a clear and functional display.

Maintenance Task Frequency
Inspect Dashboard Every 6 Months
Clean Contacts Every 3 Months

By following these steps, you can keep your 2006 F150 odometer display in top condition. Regular maintenance is key to avoiding costly repairs.

2006 F150 Odometer Display Not Working: Quick Fix Guide

Credit: m.youtube.com

When To Seek Professional Help

When your 2006 F150 odometer display stops working, it can be frustrating. Knowing when to seek professional help is crucial. Not every issue can be fixed at home. Understanding the signs can save you time and money.

Signs You Need A Mechanic

  • Erratic Display: If the odometer shows random numbers or letters, it may be a serious issue.
  • Complete Failure: A completely blank display often requires professional attention.
  • Intermittent Issues: If the display works sometimes but not always, it’s time to consult a mechanic.
  • Electrical Problems: Flickering lights or other electrical issues can indicate a bigger problem.

Finding A Trusted Repair Shop

Finding a trusted repair shop is essential for fixing your odometer. Here are some tips:

Criteria Details
Reviews Check online reviews for customer experiences.
Certifications Look for certified mechanics with experience.
Warranties A good shop offers warranties on their work.
Estimates Get multiple quotes to compare prices.

Finding the right mechanic ensures your 2006 F150 is in good hands. Don’t ignore the signs; seek help when needed.

2006 F150 Odometer Display Not Working: Quick Fix Guide

Credit: m.youtube.com

Frequently Asked Questions

Why Is My Digital Odometer Not Working?

A non-working digital odometer may be due to a blown fuse, faulty wiring, or a malfunctioning speed sensor. Check for loose connections or damaged components.

Why Is The Instrument Panel Not Working On My F150?

The instrument panel on your F150 may not work due to a blown fuse, faulty wiring, or a malfunctioning instrument cluster. Check these components for issues.

Why Is My Speedometer Not Working On My F150?

Your F150 speedometer might not work due to a faulty speed sensor, damaged wiring, or a malfunctioning instrument cluster.

Why Is The Speedometer Not Working On My 2005 Ford F150?

A faulty speed sensor, damaged wiring, or a malfunctioning instrument cluster could cause the speedometer to stop working on your 2005 Ford F150. Check these components to diagnose and fix the issue.

Conclusion

Fixing a 2006 F150 odometer display can be simple with the right steps. Regular maintenance prevents future issues. Always consult your vehicle’s manual for guidance. Seek professional help if needed. Keeping your odometer functional ensures accurate mileage tracking. Addressing this issue promptly can save you time and money in the long run.
