How to Prime Ford 6.7 Powerstroke Fuel System (All Years)
Priming a 6.7 Powerstroke fuel system means cycling the ignition to ON without starting the engine, letting the electric lift pump push fuel through the lines until the air is gone. Skip this and you risk starving the Bosch CP4.2 high-pressure pump, which depends on diesel fuel for lubrication.
Most owners hit this after a routine fuel filter change, where the fix is quick and well defined. A smaller group lands here after running the tank completely dry, which takes far more patience. This guide covers both situations on every model year from 2011 through 2026, plus the real cycle-count data most guides skip.
Prime Day Pick
Limited-time Prime Day price. Check current discount on Amazon.
How to Prime a 6.7 Powerstroke Fuel System
2011 to 2026, all model years
- Key ON for 30 seconds, then OFF
- Repeat 6 times total
- Start the engine normally
- Takes about 3 minutes
- Add fuel first, several gallons
- Cycle the key the same way, far more times
- Crack the Schrader valve fitting if needed
- Stop and call a tow past 30+ failed cycles
Fuel Pressure by Key Cycle
5 Mistakes That Stop a Prime
The typical repair cost when a starved CP4.2 pump fails and contaminates the entire fuel system with metal shavings.
Prime Day Pick
Limited-time Prime Day price. Check current discount on Amazon.
What this shows: a routine prime after a fuel filter change needs 6 key cycles of 30 seconds each, reaching full fuel pressure of about 63.5 psi by the seventh cycle. Priming after running completely out of fuel takes far longer, often 20 to over 100 cycles. The five most common mistakes that cause a failed prime are an unseated filter housing, an overtightened cap, a skipped O-ring, a non-OEM filter, and stopping the key cycles too early. Skipping proper priming risks the CP4.2 high-pressure pump, and a full failure typically costs $9,000 to $15,000 to repair.
What You Need Before Priming Your 6.7 Powerstroke
You need fuel in the tank before doing anything else. Priming cannot build pressure from an empty system, so add at least a few gallons first if you are low.
Prime Day Pick
Limited-time Prime Day price. Check current discount on Amazon.
Stick with genuine Motorcraft filters for any filter change. The chassis filter is FD-4615 for 2011-2016 trucks, FD-4625AA for most 2017 and newer trucks, with FD-4647 as the current production version fitting the same housing. For a full breakdown of which OEM and aftermarket options actually hold up, the best fuel filter for the 6.7 Powerstroke covers what is worth buying.
Routine priming needs no special tools, just the ignition key or push-button start and a few minutes. 2011-2016 and 2017-plus trucks prime the same way, though the fuel system layout underneath changed in 2017, covered later in this guide.
Prime Day Pick
Limited-time Prime Day price. Check current discount on Amazon.
How to Prime a 6.7 Powerstroke After a Filter Change
This is the exact procedure Ford specifies in the 6.7L diesel owner’s manual after a complete fuel filter replacement.

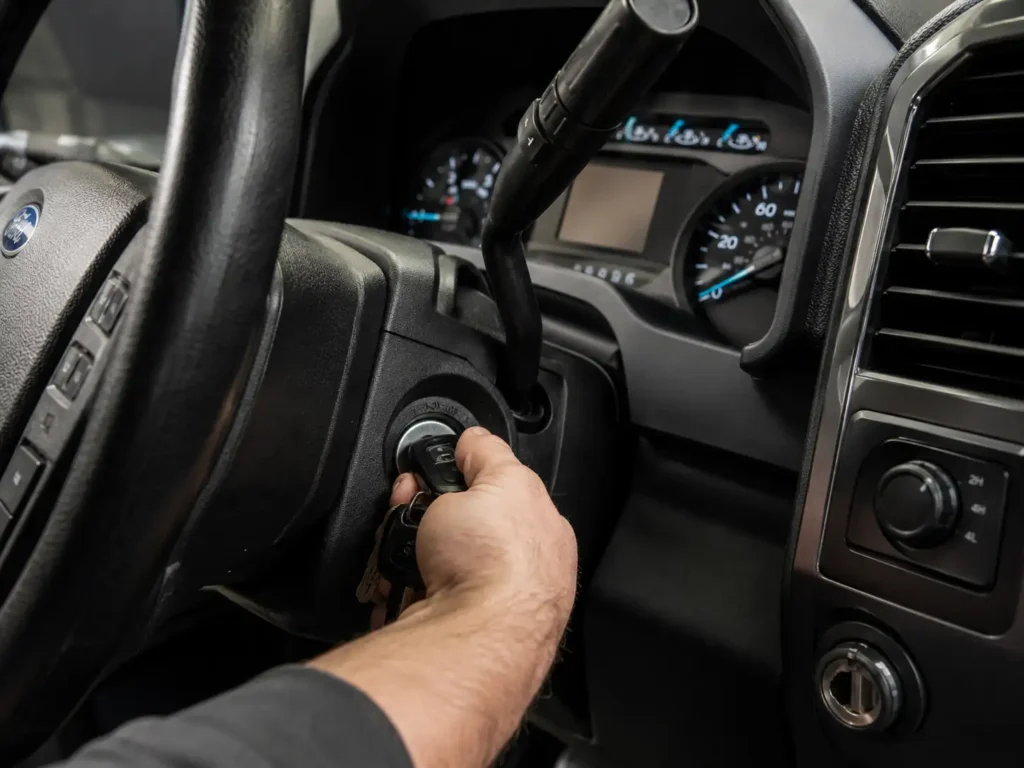

- Turn the ignition to ON without starting the engine. Hold it there for 30 seconds while the electric lift pump runs.
- Turn the ignition OFF.
- Repeat steps 1 and 2 a total of six times. Ford’s procedure calls for six full 30-second cycles after a complete filter change.
- After the sixth cycle, start the engine normally.
- If it sputters, stalls, or runs rough on the first start, turn the key off and run two to three more cycles before trying again.
If you only drained the water separator without replacing the filter elements, Ford’s lighter procedure applies: two 30-second cycles is enough.
Prime Day Pick
Limited-time Prime Day price. Check current discount on Amazon.
For the full filter replacement walkthrough, including where each filter sits and what tools to use, see the 6.7 Powerstroke fuel filter change guide.
Signs Your 6.7 Powerstroke Is Fully Primed
The lift pump’s whirring fades out before the full 30 seconds is up instead of running the whole cycle. The engine fires within a second or two of cranking, with no delay or stumble. Listen for both before deciding priming is complete.
What to Do When a 6.7 Powerstroke Runs Out of Fuel
Running a 6.7 Powerstroke completely dry is a different problem than a filter change, and it takes considerably more patience.
- Add fuel first, several gallons minimum, since the pump cannot prime against an empty tank no matter how many cycles you run.
- Cycle the ignition ON for 30 seconds, then OFF, the same as a routine prime. Expect to need far more than six cycles. Real owner reports on Ford Powerstroke forums describe needing anywhere from 20 to over 100 cycles after a completely dry tank, depending on how much air entered the lines.
- If standard cycling will not build pressure after 20 or more attempts, crack the fitting at the Schrader valve on the fuel cooler line while cycling the key, then retighten once fuel flows steadily without air bubbles.
- A dedicated fuel filter bleeder tool, sold for Powerstroke diesels, speeds this up and cuts down the mess from the Schrader valve method.
Do not respond to a failed start by cranking the starter repeatedly. Several owners burned out their starter motors trying to force a start before the system had enough cycles, turning a fuel problem into an electrical one.
When to Stop and Call a Tow
If you have run 30 or more key cycles, tried the Schrader valve bleed, and the truck still will not hold a start, stop. Continued cranking risks the starter and will not clear trapped air deeper in the system. A shop with a pressure bleeder tool finishes the job faster and without the mechanical risk.
How the 6.7 Powerstroke Fuel System Changed After 2017
Ford relocated the lift pump for the 2017 model year, and that change is the reason the priming procedure has a small wrinkle depending on which generation you own.
On 2011-2016 trucks, the lift pump is frame-mounted and built into the primary chassis filter housing, with a single fuel inlet and outlet fitting. On 2017 and newer trucks, Ford moved the lift pump into the fuel tank and added a third quick-disconnect fitting for fuel return.
That third fitting is one more place for an air leak to start if it is not fully seated during a filter change. Ford’s procedure also calls for disconnecting the fuel line quick-connect coupling at the in-tank pump on 2017 model year trucks specifically, a step that 2018 and newer trucks skip entirely.
How Many Key Cycles It Takes to Prime a 6.7 Powerstroke
Most 6.7 Powerstrokes need at least six full key cycles before fuel pressure is high enough for a clean start, matching Ford’s own six-cycle procedure for a complete filter change.
One owner on the PowerStroke.org forum logged actual fuel pressure at the end of each cycle on a stock fuel system using a mechanical gauge. The numbers show why stopping at two or three cycles leaves the system under-primed:
| Key Cycle | Approximate Fuel Pressure |
|---|---|
| 1 | 1.5 psi |
| 2 | 4.2 psi |
| 3 | 10.6 psi |
| 4 | 28.2 psi |
| 5 | 47.3 psi |
| 6 | 59.8 psi |
| 7 | 63.5 psi (full) |
| 8 | 63.5 psi (full) |
This is one owner’s real-world data, not a factory specification, so individual results vary with fuel level, filter condition, and how much air entered the system. The pattern holds regardless: pressure climbs slowly through the first three or four cycles, then builds fast, with most systems reaching full pressure by cycle seven or eight.
5 Mistakes That Stop a 6.7 Powerstroke From Priming
Most failed primes trace back to one of five mistakes, not a defective pump.
Filter Housing Not Fully Seated
If the chassis filter housing was not torqued down to its mechanical stop, air gets pulled back in with every cycle no matter how many times you prime. Reseat the housing fully and confirm it stops rotating before reconnecting the electrical connector.
Overtightened or Cracked Filter Cap
Going past hand-tight plus a small wrench turn distorts the cap or cracks the housing outright. Ford’s specified torque on the lower housing bolts is a maximum of 9 Nm, closer to snug than tight.

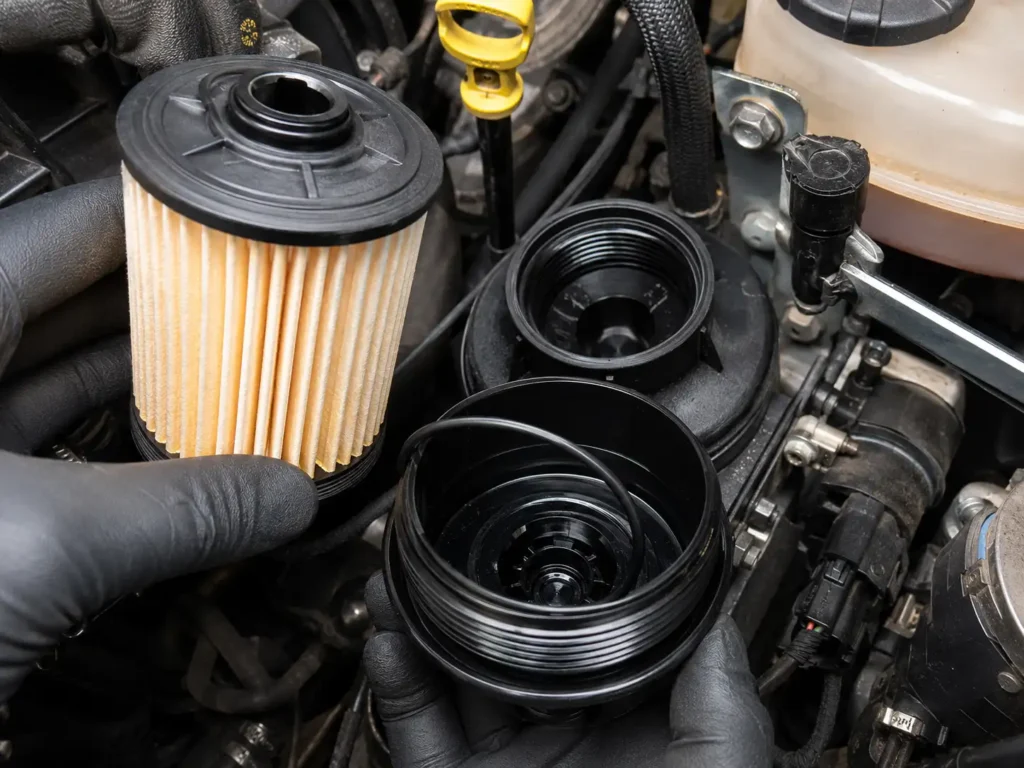

Skipped or Reused O Ring
An old or dry O-ring lets air leak in around the cap even when everything else is correct. Replace the O-ring with every filter change and oil it lightly before reinstalling.
Non OEM Filter With a Poor Seal
Some aftermarket filters fit loosely enough in the housing to let air bypass the seal entirely. Genuine Motorcraft filters are built to the factory tolerance and remove that variable.
Too Few Key Cycles Before Starting
The pressure data above shows why two or three cycles is rarely enough. Run the full six cycles Ford specifies before attempting a start, even if the pump sounds quiet sooner.
Why Proper Priming Protects Your 6.7 Powerstroke CP4 Pump
Every cycle skipped is time the CP4.2 pump could spend running without the diesel fuel it depends on for internal lubrication. Air pockets create the same dry-friction wear that running low on fuel causes.
A full CP4 failure contaminates the entire high-pressure fuel system with metal shavings. Owners and repair shops have reported total repair bills between $9,000 and $15,000 once injectors, rails, and lines all need replacement, including one dealership quote of $12,684.65 for a full fuel system repair. For the complete list of warning signs before a pump fails this badly, see the 6.7 Powerstroke CP4 failure symptoms guide.
Get It Right the First Time on Every 6.7 Powerstroke
Priming a 6.7 Powerstroke fuel system comes down to patience more than skill. A routine filter change needs six key cycles, 30 seconds each, and the truck starts clean. Running the tank dry takes longer, sometimes dramatically longer, and rewards a careful approach over repeated cranking.
The pattern that matters across both scenarios is the same: give the lift pump the cycles it needs before asking the engine to start. That habit, combined with genuine filters and a properly seated housing, is what keeps the CP4 pump running fuel-lubricated instead of dry.
Get the cycle count right once, and priming becomes a five-minute task instead of a frustrating guessing game.
Frequently Asked Questions About Priming a 6.7 Powerstroke
How long does it take to prime a 6.7 Powerstroke fuel system?
A routine prime after a filter change takes about three minutes, six cycles of 30 seconds each. Running the tank completely dry can take much longer, sometimes 20 or more cycles before the truck starts cleanly.
Can you start a 6.7 Powerstroke without priming it first?
Starting before the system is primed risks running the CP4.2 pump without fuel lubrication, even briefly. The truck may start anyway, but doing this repeatedly accelerates pump wear.
How many times should you cycle the key after a fuel filter change?
Ford’s own procedure calls for six full cycles, 30 seconds each, after a complete filter replacement. Two cycles is enough if you only drained the water separator without replacing the filter elements.
Why does my 6.7 Powerstroke still sputter after priming?
A sputtering start after priming usually means the filter housing is not fully seated or the O-ring was reused. Run two or three more cycles, then check the housing torque before trying again.
Is it safe to crank the engine while priming a 6.7 Powerstroke?
Repeated cranking before the system is primed is not safe for the starter motor, and several owners have burned theirs out this way. If cycling and the Schrader valve method do not work after 30 or more attempts, a 6.7 Powerstroke fuel pump upgrade or a shop visit is the safer path forward.
