Ford 3.5 EcoBoost Oil Capacity Chart 2011 to 2025 All Variants

The Ford 3.5 EcoBoost oil capacity is 6.0 quarts (5.7 liters) across every variant from 2011 through 2025 — Gen 1, Gen 2, High Output Raptor, and PowerBoost Hybrid all share the same fill volume. What changed in 2017 is the required oil specification:

Ford moved from WSS-M2C946-A to the newer WSS-M2C961-A1 standard, and using the wrong spec in a Gen 2 or newer engine can void your powertrain warranty.

This chart covers every 3.5 EcoBoost configuration by year, with the correct viscosity, Ford WSS spec, and OEM filter part number. Use the table to match your model year, then pick your oil.

3.5 EcoBoost Oil Capacity by Year — Full Chart 2011 to 2025

The table below covers every 3.5 EcoBoost application in the F-150 lineup from 2011 through 2025. All data is sourced from Ford owner’s manuals and confirmed Motorcraft OEM part specifications.

[INSERT HTML TABLE VISUAL HERE — see block below]

A note on the WSS spec transition: Ford published WSS-M2C961-A1 in July 2020 as a direct replacement for WSS-M2C946-B1, according to cross-forum documentation from Ford owner communities. The newer standard adds a mandatory chain wear test and LSPI protection requirement — both critical for the twin-turbo, direct-injection architecture of the Gen 2 engine.

Always verify your specific spec against your door-jamb sticker or owner’s manual before purchasing oil.

What Changed Between Gen 1 and Gen 2 EcoBoost Oil Specs

Ford changed the approved oil specification when it redesigned the 3.5 EcoBoost for 2017. The engine gained port-fuel and direct injection (PFDI) — two injectors per cylinder instead of one. That architecture runs hotter under boost and is more susceptible to Low-Speed Pre-Ignition (LSPI), which destroyed pistons in early GDI engines across the industry. Ford’s older WSS-M2C946-A spec was not designed for that failure mode. The newer WSS-M2C961-A1 spec was.

For full details on how Ford’s WSS oil specification system works across all engines, see our Ford engine oil recommendation chart.

Gen 1 Spec (2011–2016)

Ford’s 2011–2016 3.5 EcoBoost requires oil meeting WSS-M2C946-A, a 5W-30 specification. Synthetic blend oil is acceptable for this generation, though most experienced owners and community consensus on ford-trucks.com recommend full synthetic to handle turbo heat. The spec has since been superseded by WSS-M2C946-B1 and then WSS-M2C961-A1 — both are backward compatible with Gen 1 engines, meaning you can use a newer-spec oil in a Gen 1 truck without any issue.

Gen 2 Spec (2017 and Newer)

The 2017-and-up 3.5 EcoBoost requires oil meeting WSS-M2C961-A1 — 5W-30 full synthetic, API SP / ILSAC GF-6A certified. This spec mandates a Ford-specific chain wear test not required by generic API standards, directly addressing the timing chain wear patterns seen in high-mileage Gen 1 engines. Ford published WSS-M2C961-A1 as a replacement for WSS-M2C946-B1 in July 2020, consolidating the EcoBoost oil standard across its lineup.

What the WSS Code Means on the Bottle

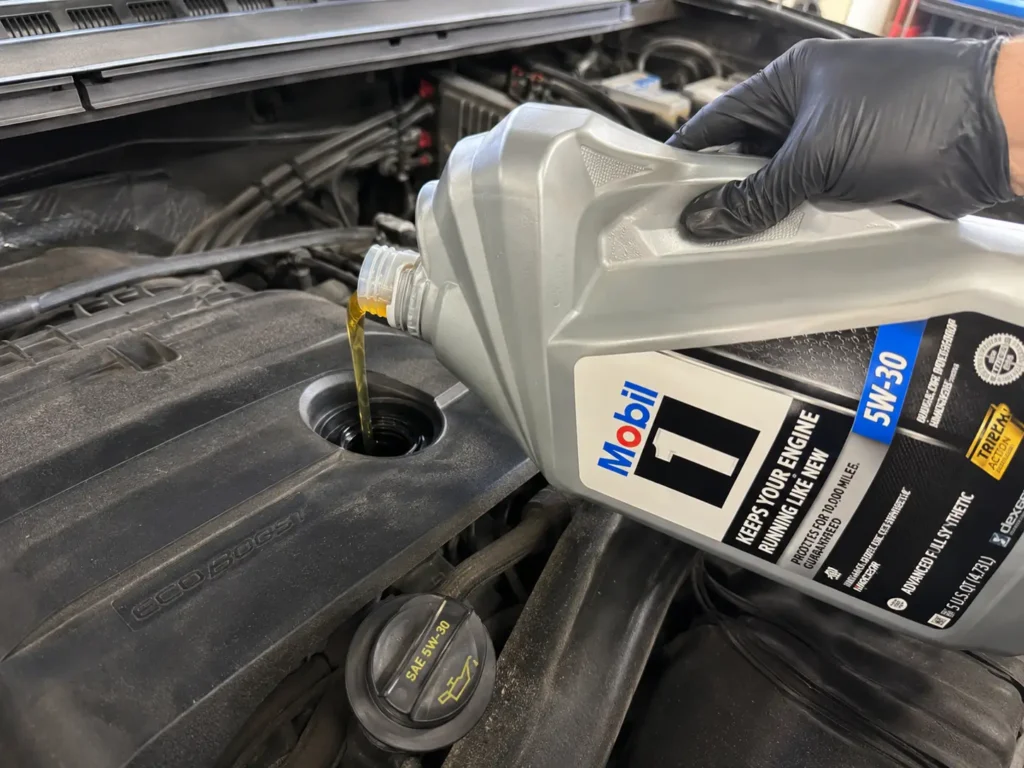

When you buy oil, look for “WSS-M2C961-A1” printed on the label or listed in the product’s Technical Data Sheet. Most major full synthetic 5W-30 oils now carry this approval: Motorcraft Full Synthetic 5W-30, Pennzoil Platinum 5W-30, Mobil 1 Extended Performance 5W-30, Castrol EDGE 5W-30, and Valvoline Advanced Full Synthetic 5W-30 all meet the standard. If it says API SP and ILSAC GF-6A, it almost certainly meets WSS-M2C961-A1 — but confirm on the bottle or manufacturer’s data sheet before buying.

5 Motorcraft and Aftermarket Oils That Meet Ford WSS Specs

Any 5W-30 oil meeting Ford’s WSS spec for your generation will protect the engine. Below are five verified options, starting with Ford’s own recommendation.

• Motorcraft Full Synthetic SAE 5W-30 — Meets WSS-M2C961-A1. Ford’s own formulation and the factory-fill reference point. Recommended for all Gen 2 and Gen 3 trucks. Available at any Ford dealer and most auto parts retailers.
• Pennzoil Platinum Full Synthetic 5W-30 — Meets WSS-M2C961-A1. One of the most widely cited choices on f150forum.com for high-mileage EcoBoost trucks. PurePlus gas-to-liquid base stock.
• Mobil 1 Extended Performance Full Synthetic 5W-30 — Meets WSS-M2C961-A1. Strong thermal stability under towing loads. Confirmed by PowerBoost owners as their go-to for hybrid F-150 applications.
• Castrol EDGE Full Synthetic 5W-30 — Meets WSS-M2C961-A1. Titanium FST technology provides strong film strength under turbo heat. Good choice for trucks running at high boost regularly.
• Valvoline Advanced Full Synthetic 5W-30 — Meets WSS-M2C961-A1 (confirmed on product data sheet). MaxLife variant also carries the approval. Widely available at Walmart, AutoZone, and O’Reilly.

For a full breakdown of which oil performs best for towing versus daily driving, see our complete 3.5 EcoBoost oil buying guide.

How to Check Oil Level on a 3.5 EcoBoost Without Getting a False Reading

One of the most common 3.5 EcoBoost questions on f150forum.com is why the dipstick reads past the MAX mark after a 6-quart fill. This is not an overfill. The 3.5 EcoBoost dipstick is notoriously difficult to read accurately unless you follow the right procedure. The oil simply sits higher when the truck is warm or slightly off-level.

Follow these steps to get an accurate reading:

1. Park the truck on a flat, level surface.
2. Shut the engine off and wait at least 5–10 minutes. Oil needs time to drain back into the pan.
3. Pull the dipstick, wipe it clean, reinsert fully, and pull again.
4. The oil level should fall within the hash marks between MIN and MAX. Anywhere in that range is correct.

If the level reads above the top hash mark after confirming the truck is level and the engine is fully cold, drain a small amount (about a quarter quart) and recheck. A confirmed overfill on a turbocharged engine can cause oil foaming and aeration, which reduces lubrication under boost.

For a full look at what oil type to run in your 3.5, see our 3.5 EcoBoost oil type guide.

Recommended Oil Change Intervals by Driving Condition

Ford sets two oil change intervals for the 3.5 EcoBoost depending on how hard the engine works. Both are sourced from the official 3.5 EcoBoost F-150 maintenance schedule.

Normal Service: up to 10,000 miles or 1 year Ford’s Intelligent Oil-Life Monitor (IOLM) governs normal-service intervals. The system tracks driving conditions in real time and will alert you before 10,000 miles if conditions warrant it. Follow the IOLM; do not extend beyond it.

Severe Service: 3,000–7,500 miles or 1 year Severe service applies to trucks that regularly tow or haul, sit in stop-and-go traffic, idle for extended periods, operate in extreme heat or cold, or see commercial/fleet use. Ford’s official severe interval is 3,000–7,500 miles depending on conditions.

There is an important practical reason to follow the shorter severe interval if you tow. Direct injection engines — including the EcoBoost — experience higher fuel dilution than port-injected engines. Fuel mixes into the crankcase oil more readily under the heat and combustion conditions of a turbocharged DI engine. At high-dilution levels, oil viscosity drops and film strength weakens exactly when the engine needs it most. The f150forum.com community consensus for tow rigs and working trucks is a 5,000-mile oil change maximum, regardless of what the IOLM displays.

Keep Your 3.5 EcoBoost on the Right Oil Spec Every Change

The 3.5 EcoBoost oil capacity is simple: 6.0 quarts, every variant, every year from 2011 through 2025. What is not always simple is getting the right spec for your generation. Gen 1 owners (2011–2016) need a 5W-30 meeting WSS-M2C946-A at minimum. Gen 2 and newer owners (2017+) need a 5W-30 full synthetic meeting WSS-M2C961-A1.

Match your year to the chart above. Pick an oil that shows WSS-M2C961-A1 on the label if you have a 2017 or newer truck. Use the FL-500S filter for every model year in this table. If you tow regularly, treat your truck as severe service and cap your interval at 5,000 miles.

Frequently Asked Questions

How many quarts of oil does a Ford 3.5 EcoBoost take?

The 3.5 EcoBoost takes 6.0 quarts (5.7 liters) of oil with a filter change. This capacity applies to all variants from 2011 through 2025, including the standard engine, High Output Raptor version, and PowerBoost Hybrid. Always confirm your level using the dipstick on a cold, level truck.

What oil does a 2017 and newer Ford 3.5 EcoBoost require?

The 2017-and-newer 3.5 EcoBoost requires 5W-30 full synthetic oil meeting Ford specification WSS-M2C961-A1. This spec mandates API SP / ILSAC GF-6A certification and includes a Ford-specific chain wear test. Oils like Motorcraft Full Synthetic, Pennzoil Platinum, and Mobil 1 Extended Performance all carry this approval.

Is the Motorcraft FL-500S the right filter for a 3.5 EcoBoost?

Yes. The Motorcraft FL-500S is the OEM oil filter for all 3.5 EcoBoost F-150 applications from 2011 through 2025, including the PowerBoost Hybrid. The Ford part number is AA5Z-6714-A. It is confirmed by Motorcraft’s official fitment data to cover the full 2011–2026 F-150 range.

Can I use 5W-20 instead of 5W-30 in my 3.5 EcoBoost?

No. Ford specifies 5W-30 for the 3.5 EcoBoost in all years. The 5W-20 specification applies to naturally aspirated Ford engines like the 5.0L V8, not to the twin-turbocharged EcoBoost. Using 5W-20 in a turbocharged engine reduces high-temperature film strength and can accelerate wear on turbo bearings and timing components.

How often should I change the oil in a 3.5 EcoBoost that tows?

If you tow regularly, treat your truck as severe service and change oil every 5,000 miles at most. Ford’s official severe-service interval is 3,000–7,500 miles depending on conditions. Direct injection engines experience higher fuel dilution than port-injected engines, which breaks down oil viscosity faster under towing heat and load — making shorter intervals a practical necessity, not just a conservative preference.
